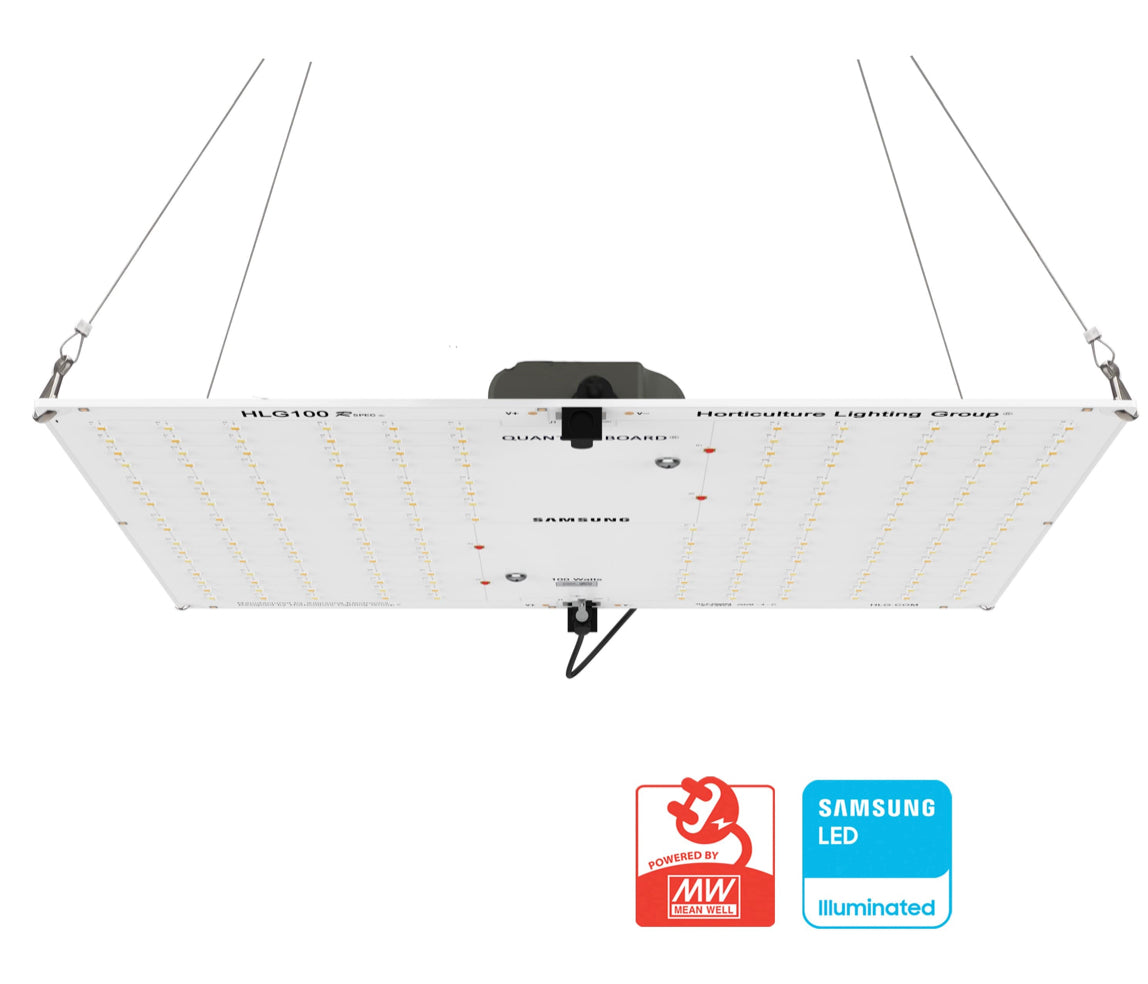

HLG 100 Rspec® uses a high efficiency white light Quantum Boards® made by Samsung using the latest LM301H full spectrum LED and LM351H Deep Red LED to help with flowering. This fixture produces 220 PPF, 14,000+ Lumens with just 95 Watts of power. Equivalent to 220W T5 or 300W CFL output or 200W metal halide.
DOWNLOAD HLG 100 R SPEC MANUAL
View efficiency lab report here
TOP FEATURES
- High efficiency Samsung LM301H LED
- White Light Full Spectrum for better results

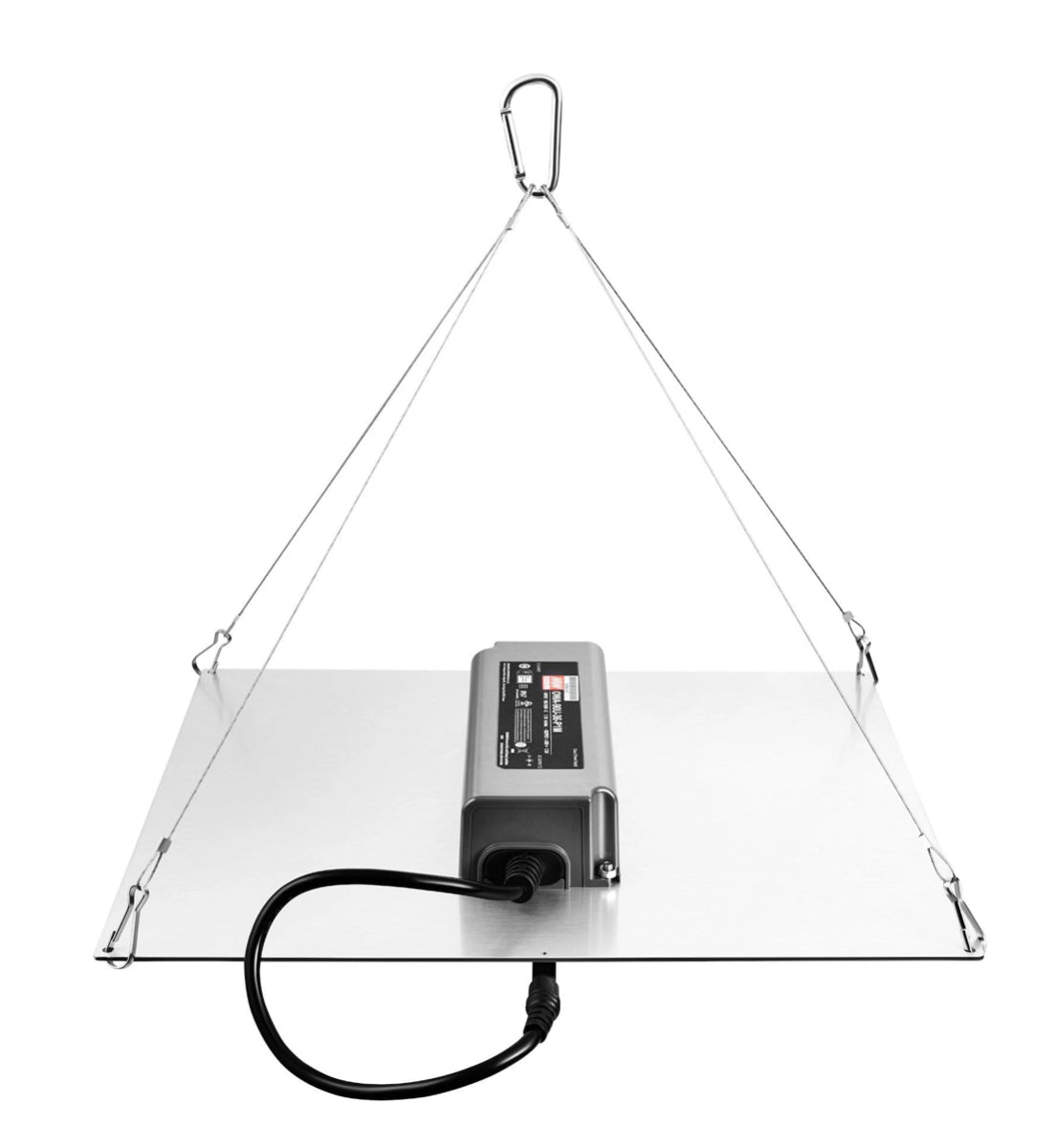

- Reliable passive cooled design
- Better canopy light penetration with diffused light
- Non-Dimmable Mean Well Power Supply included with NEMA 1-15p plug
SPECIFICATIONS
| Power | 95 Watts |
| AC Voltage Range | 90 VAC to 264 VAC |
| AC Current | 0.9A @120V |
| LED | 172 LM301H + 4 LM351H V2 Samsung LED |
| Flowering Footprint | 2' x 2' |
| Veg Footprint | 3' x 3' |
| System PPF Efficacy | 2.41* μmol/joule |
| Total output | 220 PPF |
| Dimensions | 12.75" x 11" x 2.5" |
DIMMING AND EXTENSION
Does not include dimming. Non-Dimmable design.
Extension cords are not recommended as they can break the connector on the board.
