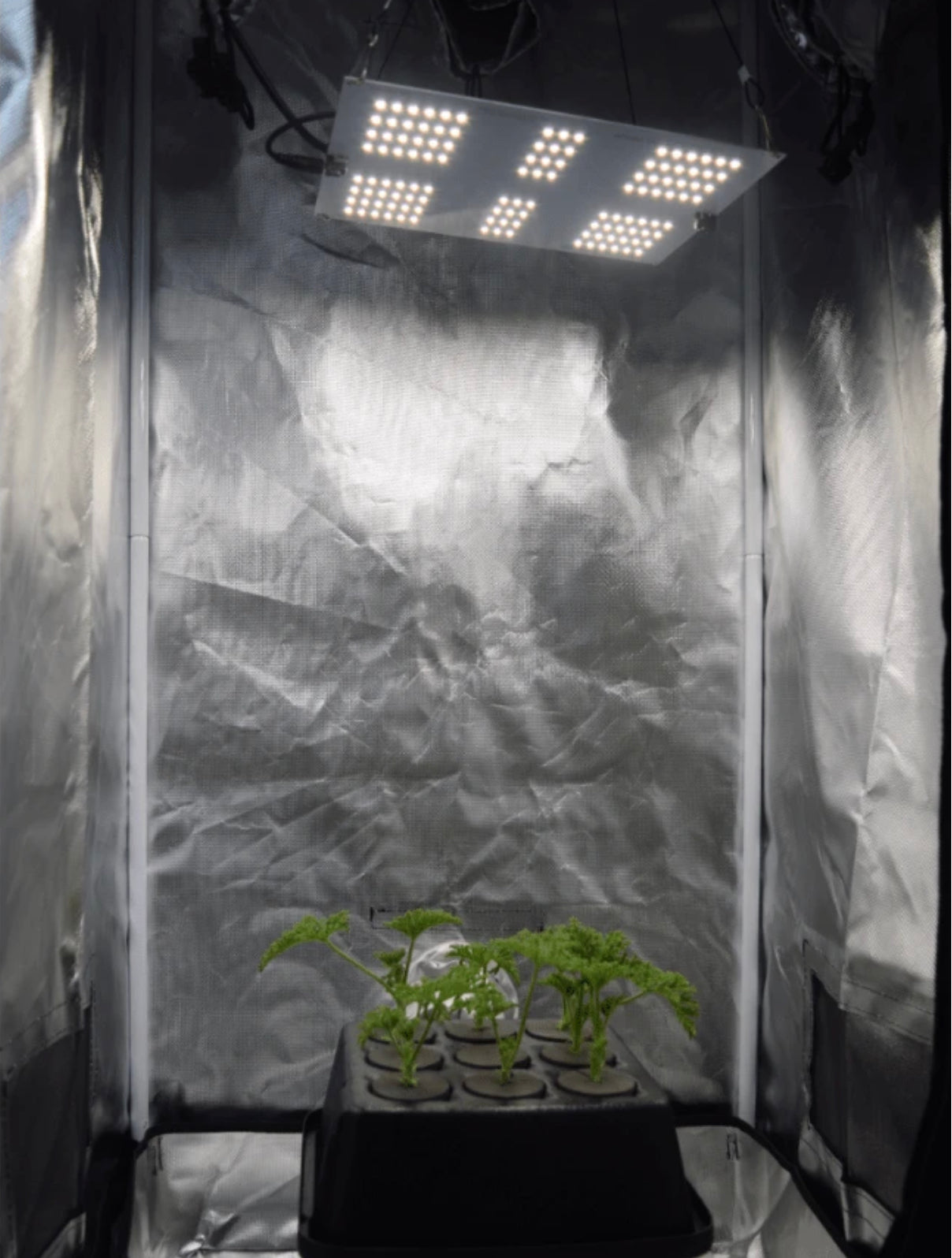

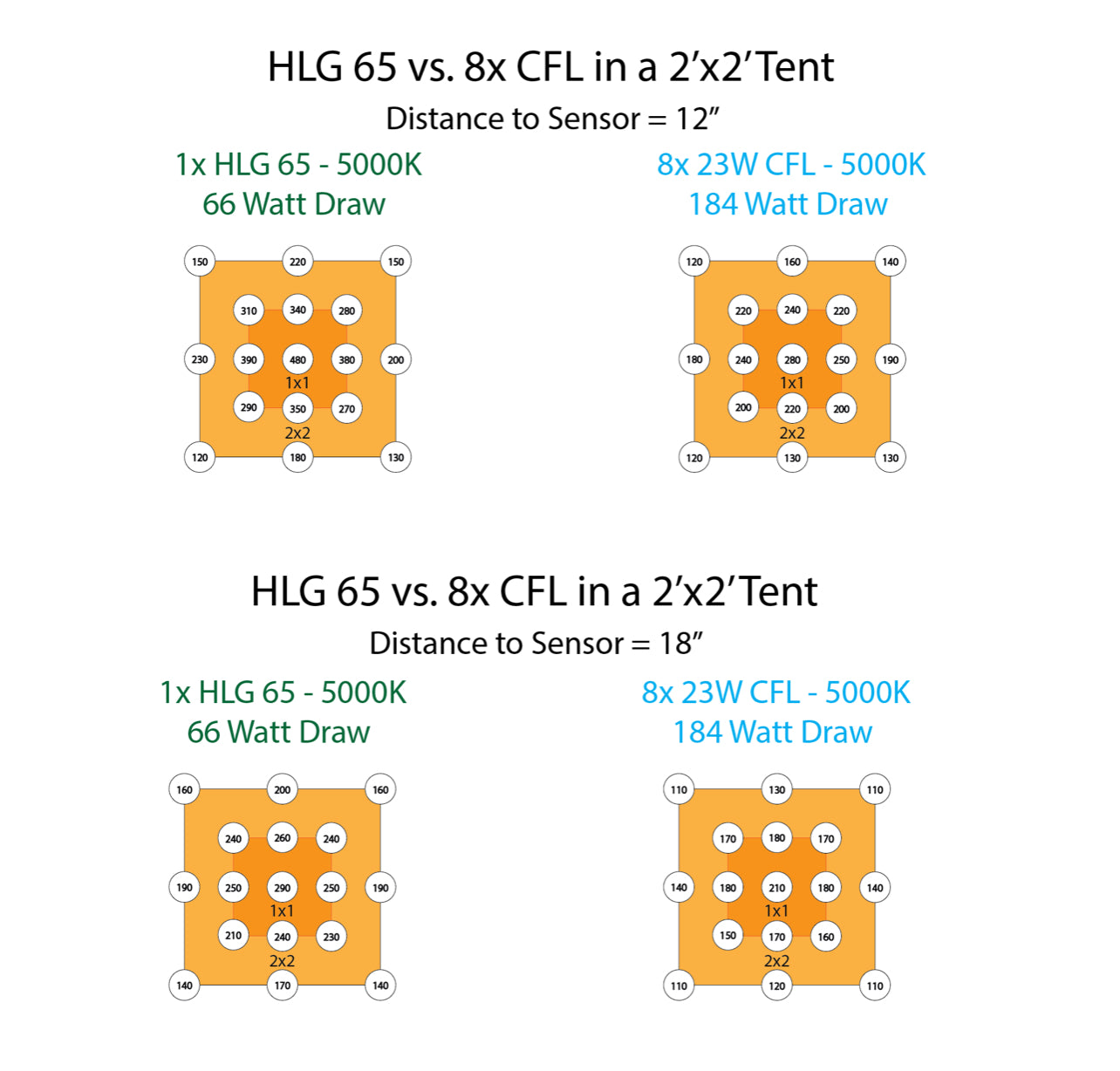

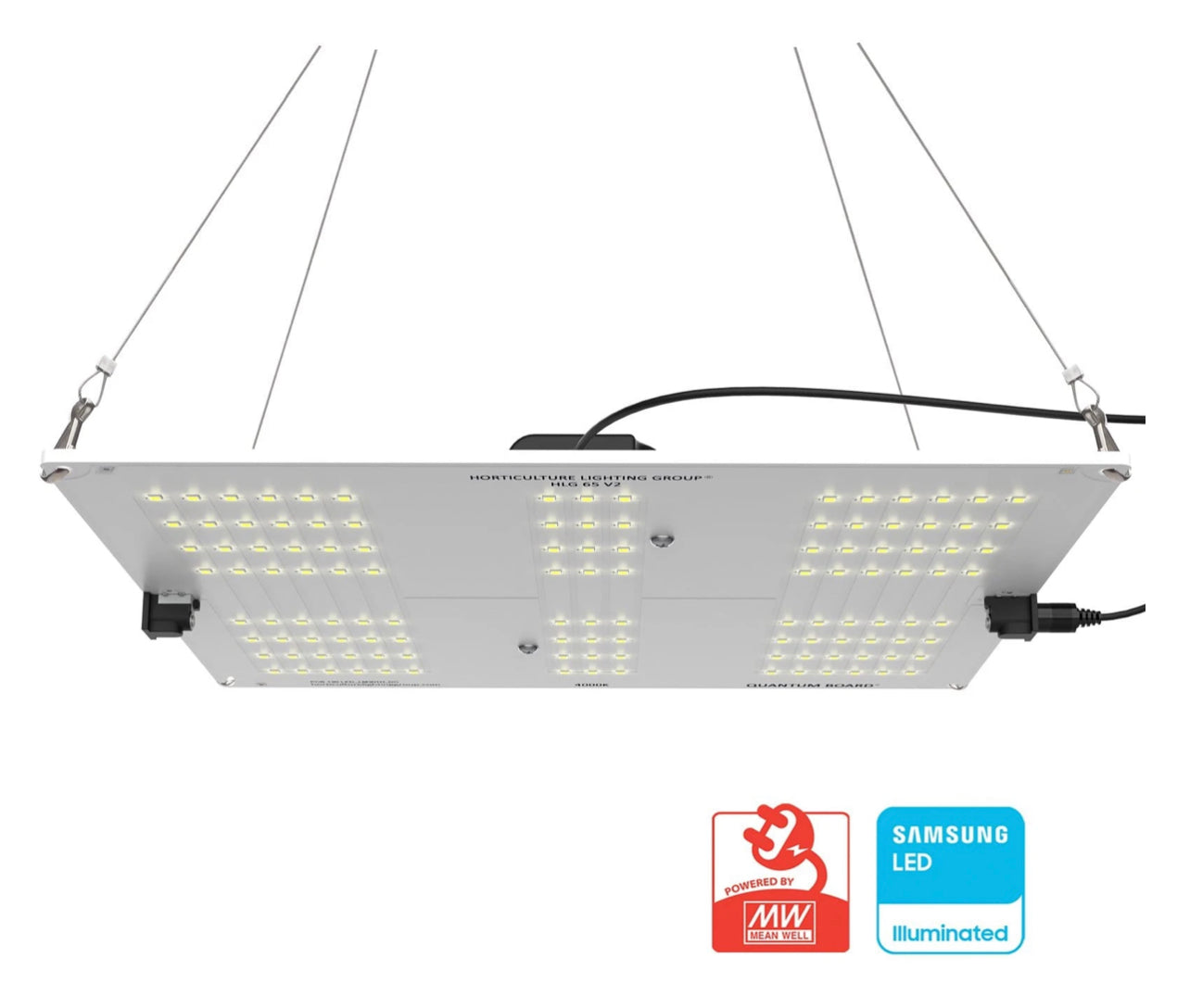

HLG 65 V2 Lamp is designed for vegging, clones, supplemental lighting or a small plant. This lamp uses our custom designed high efficiency white light Quantum Boards®. With a total of 120 Samsung LM301H LED's, this fixture produces 10,000 Lumens with just 65 Watts of power. Equivalent to 150W T5 or 200W CFL output or 150W metal halide.
TOP FEATURES

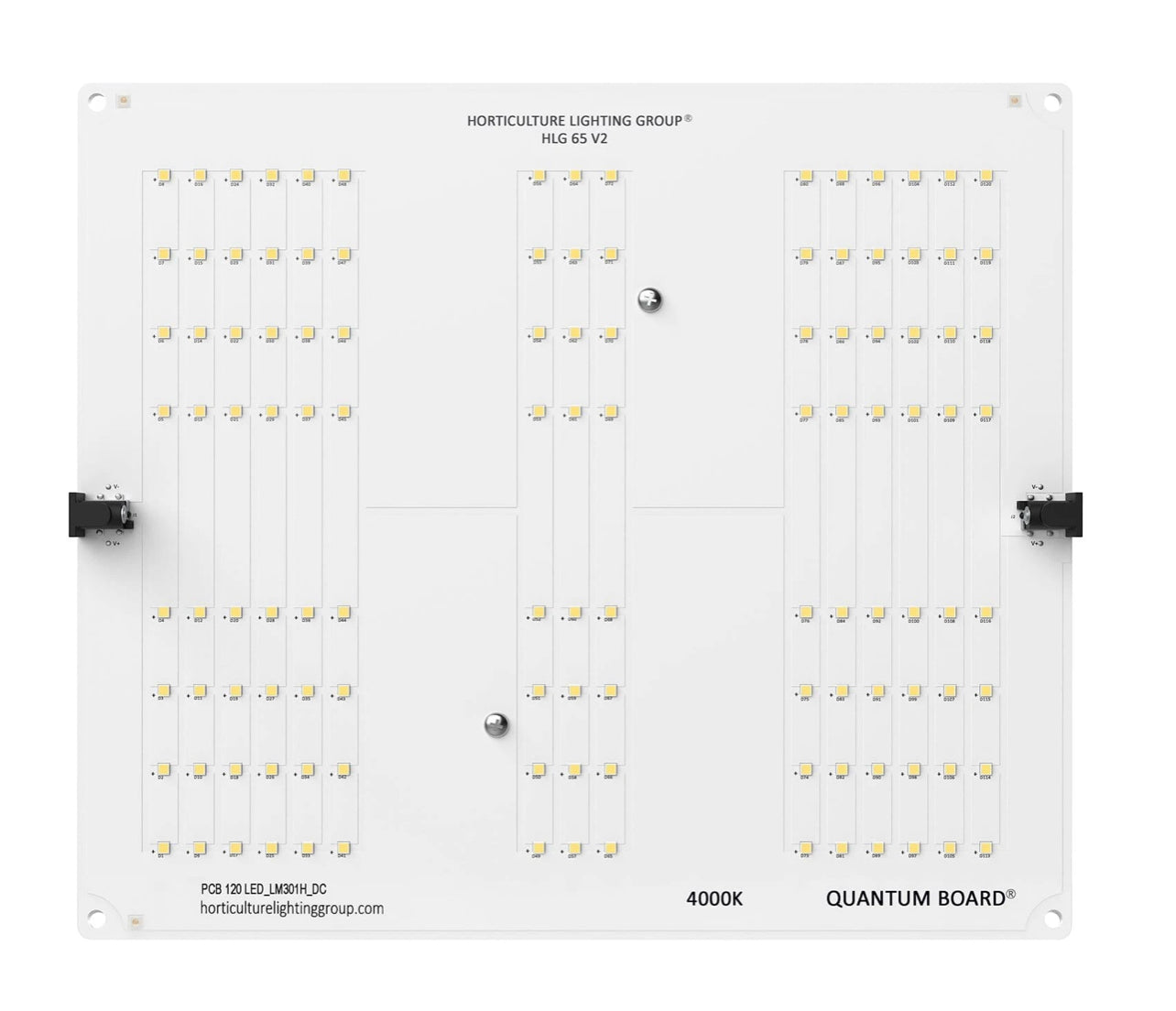

- High efficiency QB120 Quantum Board®

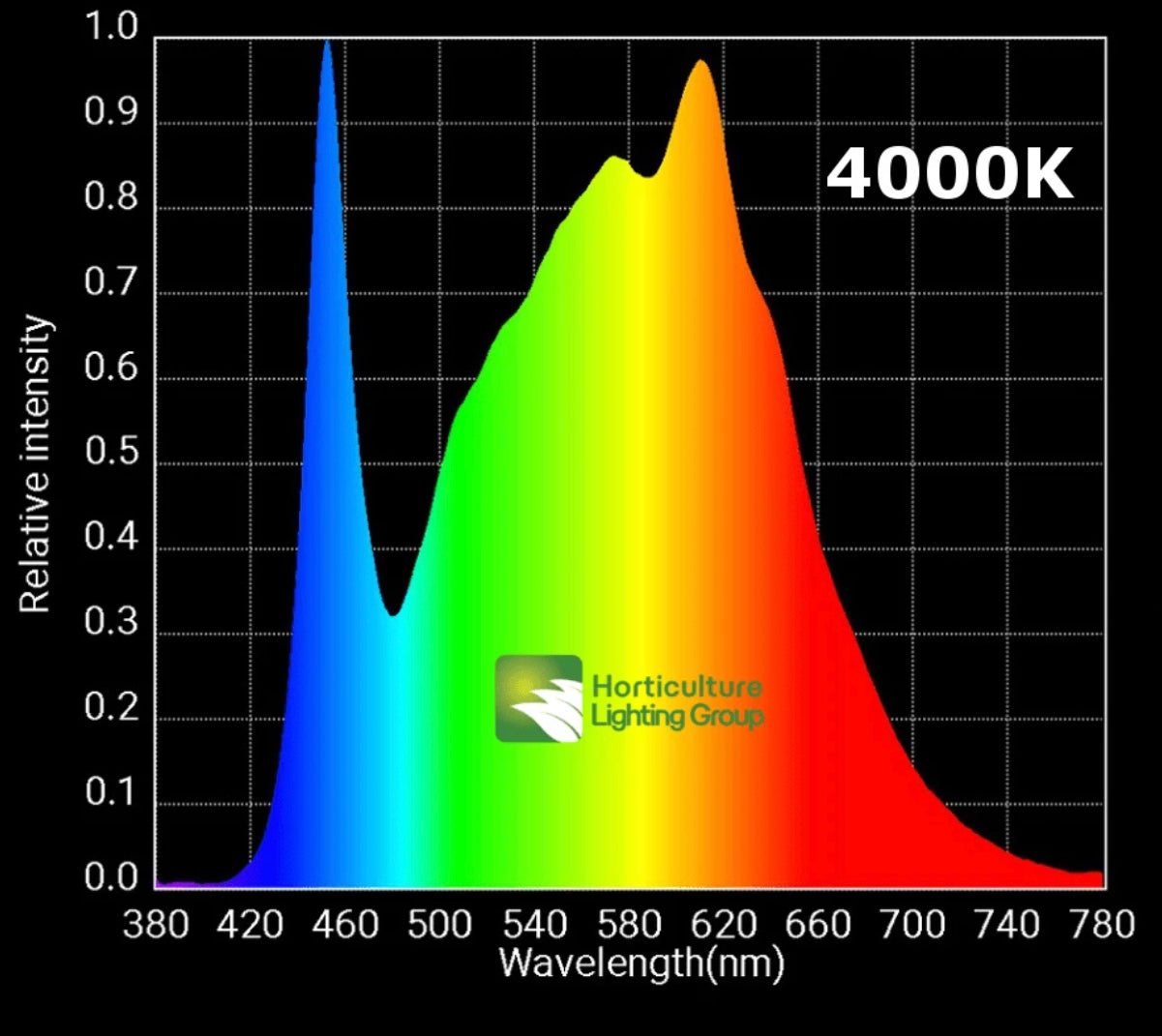

- White Light Full Spectrum 4000K. Ideal for veg and flowering in small spaces
- Reliable passive cooled design
- Better canopy light penetration with diffused light
- Non-Dimmable Mean Well Power Supply included with NEMA 1-15p plug
- 3 Year Warranty
SPECIFICATIONS
| Power | 65 Watts |
| AC Voltage Range | 90 VAC to 264 VAC |
| AC Current | 1.1A @120V |
| LED | 120 Samsung LM301H LED's |
| Flowering Footprint | 2' x 1' or 1' x 2' |
| Veg Footprint | 2' x 2' |
| System Efficiency | 165 Lm/W |
| System PPF Efficacy | 2.35 μmol/joule |
| Total output | 152 PPF |
| Dimensions | 11" x 9.5" x 2" |
Not Daisy Chainable
DIMMING AND EXTENSION
Does not include a dimming Mean Well. Compatible with DC LED Rotary and Remote PWM dimmer that are rated 24VDC 2.5A or higher.
Extension Options Philmore COOLM Hanvex . Weight or pulling from an extension cord can break the connector on the board. Recommended 10 feet length or shorter. Power may drop 5% to 10% depending on extension cord length due to the voltage drop in the extension.
Note: Do you have this product and need to extend the DC side wire?
Use a "DC 2.1 x 5.5 Extension" from Amazon or Ebay
Use a "2.1 5.5 Y Splitter" if you have a 2nd board and want to share the power between 2 or more boards
